BIOREADER® 7000 -E

Our Bioreader® counts 100% of the filter area! No losses due to the exclusion of the outer border/filter region.

BIOREADER® 7000 -E
Our Bioreader® counts 100% of the filter area! No losses due to the exclusion of the outer border/filter region.

The BIOREADER® 7000 -E is the best choice to evaluate enzymatic Elispot assays, Plaque/FOCI assays or other assays in 96 well or eve 384 well plates.

Verified and validated in international studies.



Model types:

The Alpha is optimized for one specific plate type. This model is for example commonly used with Tuberculosis assay in 8-well strip plates.

The Beta can be used for all other kinds of 96 well plates, incl. wells with small volume, transparent, black and white plates with clear bottom and transparent or white Microfilter plates. This model can also count 2 different immunohistochemical or enzymatic colors per well.



Non-Fluoro substrats and staining

This BIOREADER® 7000 is specially designed for visible CV or immunhistochemical substrates.

The patented dual telecentric illumination suppresses reflection of the sidewall of Microfilter plates.

Elispot with all available substrates like AEC,Silver,TMB or BCIP/NBT

Enzyme conjugates like Alkaline Phosphatase (ALP) or Horseradish Peroxidase (HRP)



Flexibility

The Bioreader® hardware may be upgraded on site. Brickstone principle.

Independence

Bioreader® operates independent form any assays or kit manucafurer, so you may choose among all assay/kit manufactures.



Features
  • Affordable Bioreader® 7000 –E enzymatic assay reader
  • Brand-new generation 7 makes it significantly faster and more precise regarding positioning.
  • Approved and verified in worldwide collaborative studies: > 300 Bioreader® units sold worldwide.
  • Upgradable: On-site installation of other software packages.
  • Measure Protocol development assistance: includes Spot Profiling to automatically generate optimized measure protocols.
  • Verified measure programs.
  • Front loader, automatic door.
  • Dual tele-centric illumination.
  • Interactive training program.
  • Export to Excel/Word/Power Point.
  • LIMS/LIS import and export capabilities.
  • High contrast/low noise cameras from 5 - 41 MPixel available.
  • Incl. computer and monitor.
  • Optional full automation with plate 'feeding system'.
  • DQ/IQ/OQ/PQ documentation possible.
  • 12 month warranty.
Software

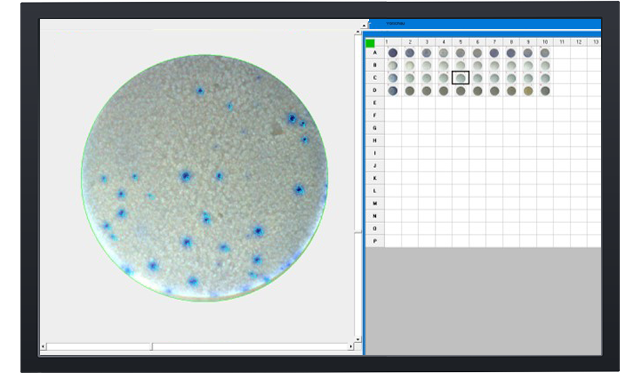

Eazyreader® software

  • Innovative EazyReader® software combines ‘easy of use’ and versatility and flexibility.
  • Scan, analyze and overlay live time.
  • Creates up to 7 images for each well simultaneously during the scan.
  • ‘Profiling’ app helps to create user independent measure protocols for Elispot beginners and references for experts.
  • Verified in collaborative studies.
  • Export options and reports with all scalable images and results even in one file.
  • Customer specific export and report templates.
  • Video clips and content specific help files.
  • Qualified installation and training with each Bioreader® model.
  • On-site or internet remote services and support.
  • ‘Classified’ measure protocols ‘history’ tracking and comparison tools.
  • User specific plates, Studies/projects, plate layouts/designs and measure protocols prevent from mix-up.
  • More accurate ‘cytokine quantification’ based on the patented ‘photometric’ dual illumination system.
  • Optional software features:
  • 'Routine’ software package: Ooptimized applications for commonly used operations, only presents the icons you require for the specific job, quickly read a plate and quickly review, Q.C. and release the results.
  • 21 CFR part 11 based software module available.

Dimension

width
45 cm
height
60 cm
depth
35 cm

Weight

weight
26 kg
The BIOREADER® 7000 -E can also use with the follow applications:
Elispot - enzymatic single color Icon

Elispot - enzymatic single color

Elispot single encymatic

Blue, red, green or silver substrat Elispot.

Detection antibody, enzyme-conjugate and precipitating substrate.

"The enzyme-linked immune absorbent spot (ELISpot) is a type of assay that focuses on quantitatively measuring the frequency of cytokine secretion for a single cell."

[https://en.wikipedia.org/wiki/ELISpot]

Why to use Elispot

•The cytokine Elispot assay is designed to enumerate cytokine secreting cells in single cell suspensions of lymphoid tissue, CNS tissue, bone marrow or preparations of peripheral blood mononuclear cells (PBMC).

•The assay has the advantage of detecting only activated/memory T cells and the cytokine release can be detected at the single cell level, allowing direct determination of T cell frequencies.

•The assay has the advantage of detecting only activated/memory T cells and the cytokine release can be detected at the single cell level, allowing direct determination of T cell frequencies.

The ELISPOT assay is an effective tool to enumerate antigen-specific T cells in the circulation of immunized humans and animals at much lower frequencies than possible with other currently available methods

The ELISPOT assay has proven to be a sensitive and unique system to follow disease progression in human individuals or animals. Several studies have indicated that alterations in the frequency of cytokine pc in different compartments of the body adequately reflect changes in immune function

The ELISPOT assay may be used to determine effects of drugs, chemicals or other compounds on cytokine secretion in vitro, thereby providing data on their putative modulatory effects on immune function in vivo

Elispot in 384 microfilter plates Icon

Elispot in 384 microfilter plates

Small volume, higher throughput.

Elispot - enzymatic dual color Icon

Elispot - enzymatic dual color

Blue and red Elispot substrate (mixed color violet)

Dual cytokine secretion.
